Gradually Modernizing Legacy Systems with the Strangler Pattern
Legacy systems are everywhere. They power critical business operations, hold years of institutional knowledge, and—let's be honest—they're often terrifying to touch. Yet as technology evolves, these systems become increasingly expensive to maintain, difficult to extend, and risky to operate.
The Strangler Pattern offers a pragmatic way forward. Rather than attempting a risky "big bang" rewrite, this pattern allows teams to incrementally replace legacy systems while keeping the lights on. The name, coined by Martin Fowler, comes from the strangler fig tree, which grows around a host tree, gradually taking over its structure until the original tree is no longer needed.
The Core Concept
The Strangler Pattern works by creating a façade layer that sits between users and the legacy system. As new functionality is built or existing features are reimplemented, the façade routes requests to the appropriate destination—either the new system or the legacy one. Over time, more traffic flows to the new implementation until eventually the legacy system can be decommissioned entirely.
This approach recognizes a fundamental truth: systems rarely fail because of technical decisions alone. They fail when teams attempt to change everything at once, creating coordination chaos, overwhelming testing resources, and introducing compounding risks.
How It Works in Practice
The implementation typically unfolds in three stages. First, teams establish the façade or abstraction layer. This might be a reverse proxy, an API gateway, or custom routing logic depending on the architecture. The key requirement is that this layer can intelligently route requests based on configurable rules.

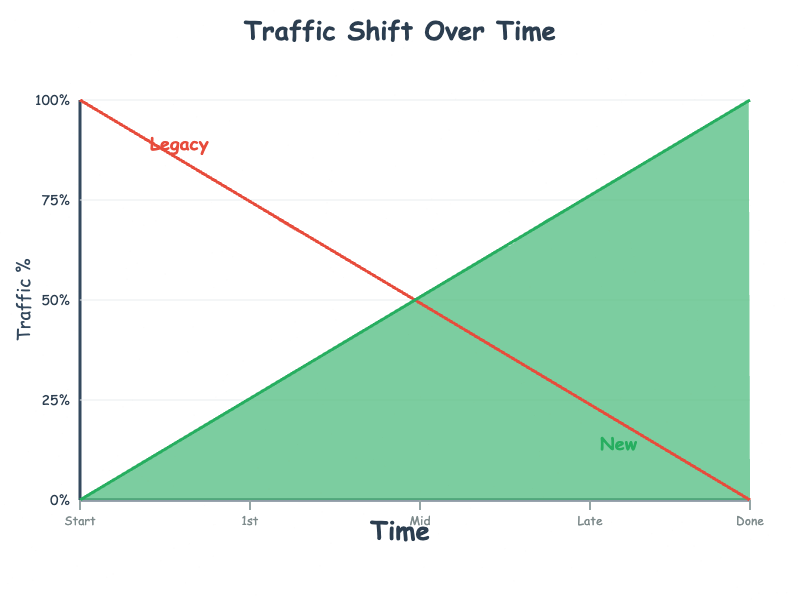

Second comes the incremental migration phase. Teams identify discrete pieces of functionality to migrate—starting with the least risky, most valuable, or most problematic components. Each piece is rebuilt in the new system, tested thoroughly, and then traffic is gradually shifted from the legacy system to the new implementation. Feature flags or routing rules control what percentage of traffic flows where, allowing for careful rollout and quick rollback if issues arise.
Finally, once all functionality has been migrated and the legacy system receives no more traffic, it can be safely decommissioned. The façade layer might remain as a permanent architectural component or be simplified away depending on the design.
Real-World Applications
Consider a monolithic e-commerce platform built in 2010. The checkout process is tightly coupled to inventory management, which connects to an aging payment gateway integration. The team wants to modernize the payment processing to support new payment methods and improve security.
Using the Strangler Pattern, they first introduce an API gateway that sits in front of the existing checkout service. They build a new payment service with modern architecture, comprehensive testing, and support for contemporary payment methods. The gateway routes a small percentage of checkout requests to the new service—perhaps starting with internal employee purchases. As confidence grows, the percentage increases until eventually all traffic flows through the new implementation.
The beauty of this approach is that the inventory system, user accounts, and product catalog continue functioning unchanged. The team isolates risk to one domain while delivering incremental value. If problems arise, rolling back is as simple as adjusting routing rules.
Strategic Advantages
The pattern excels in several dimensions. Risk management improves dramatically because changes are smaller and more isolated. Each migration increment can be thoroughly tested in production with real traffic before expanding scope. Teams learn about the new system's behavior under real conditions, discovering issues that synthetic testing might miss.
Business continuity remains intact throughout the migration. There's no "freeze" period where new features cannot ship. Different teams can work on different parts of the migration in parallel, reducing coordination overhead. The gradual approach also makes budget planning more predictable—large capital expenditures give way to incremental operational expenses.
From a technical perspective, the pattern provides natural seams for introducing modern practices. The new system can adopt different architectural patterns, updated frameworks, improved observability, and better security practices without forcing those changes onto the legacy system prematurely.
Challenges and Considerations
Despite its advantages, the Strangler Pattern introduces complexity that teams must manage carefully. The façade layer becomes a critical piece of infrastructure that requires its own monitoring, testing, and operational rigor. Routing logic can grow intricate, especially when dealing with stateful operations or transactions that span both old and new systems.
Data synchronization presents another challenge. During the migration period, data often needs to exist in both systems, requiring careful coordination to maintain consistency. Teams must decide whether to synchronize at the database level, through event streaming, or via the façade layer itself. Each approach has tradeoffs in complexity, latency, and reliability.
The pattern also requires discipline around scope creep. It's tempting to "improve just one more thing" while migrating functionality, but this extends timelines and increases risk. Successful implementations maintain clear boundaries: migrate functionality faithfully first, then enhance it in subsequent iterations.
Organizational challenges matter too. Teams need executive support for what can be a multi-year initiative. They must resist pressure to accelerate by cutting corners on testing or monitoring. Clear metrics help—tracking what percentage of traffic flows through the new system, monitoring error rates for both systems, and measuring performance improvements all help maintain momentum and demonstrate progress.

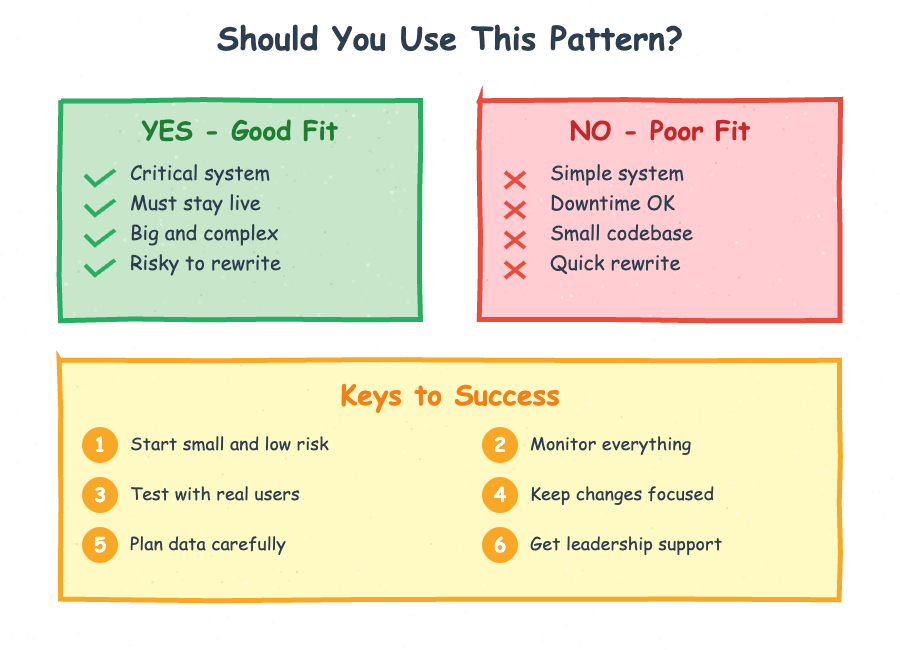

Choosing the Right Moment
The Strangler Pattern isn't always the right choice. For systems with minimal complexity or those that can tolerate downtime, a complete rewrite might be faster and simpler. When the legacy system's architecture is fundamentally sound but just needs modernization of specific components, other patterns like service extraction or API versioning might be more appropriate.
The pattern shines when facing mission-critical systems that cannot tolerate extended downtime, when teams lack complete understanding of the legacy system's behavior, or when business requirements continue evolving during the migration. It's particularly valuable when the legacy system is so fragile that even understanding it fully would be riskier than gradually replacing it.
Implementation Wisdom
Success requires thoughtful technical choices. Start with functionality that's well-understood, relatively isolated, and valuable to the business. Early wins build confidence and establish patterns that subsequent migrations can follow. Invest heavily in observability from the beginning—comprehensive logging, metrics, and tracing across both systems make troubleshooting dramatically easier.
Feature flags become essential tools, allowing fine-grained control over routing and rapid rollback when needed. They also enable A/B testing between implementations, providing empirical data about performance, reliability, and user experience differences.
Maintain dual-write capabilities during the transition, where writes go to both systems but reads come from only one. This ensures data consistency while allowing for validation. Automated testing that exercises both code paths helps catch discrepancies early.
Documentation matters more than usual. The architecture evolves continuously during migration, so keeping architectural decision records (ADRs) and maintaining clear routing documentation helps new team members understand the current state and prevents institutional knowledge from residing only in people's heads.
Architectural Evolution
One underappreciated benefit of the Strangler Pattern is how it enables architectural learning. Teams discover what works and what doesn't in the new system while the legacy system provides a safety net. If a particular architectural choice proves problematic, it can be adjusted in subsequent migrations without risking the entire system.
This learning extends to team practices too. The pattern provides a framework for gradually adopting new development workflows, deployment pipelines, and operational practices. Teams can build expertise with new technologies in lower-risk contexts before applying them to more critical functionality.
The façade layer itself often evolves into a valuable architectural component. What starts as simple routing logic can become a sophisticated edge layer that handles authentication, rate limiting, request transformation, and observability. This layer provides a natural place for cross-cutting concerns that benefit both old and new implementations.
Measuring Progress
Successful migrations require clear metrics. Track the percentage of requests flowing to the new system, but also measure business outcomes—error rates, latency, conversion rates, and user satisfaction. These metrics help answer whether the migration is genuinely improving the system or just moving complexity around.
Cost metrics matter too. Track infrastructure expenses, development time, and operational overhead for both systems. The goal is demonstrating that the migration delivers value, not just technical satisfaction. When executives see concrete improvements in reliability, performance, or feature velocity, continued investment becomes easier to justify.
Looking Forward
The Strangler Pattern represents a mature approach to system evolution that acknowledges the messy reality of production systems. Perfect rewrites are rare; successful migrations are common when approached incrementally and pragmatically.
As systems grow more complex and business requirements accelerate, the ability to evolve architecture safely becomes a competitive advantage. Teams that master gradual migration patterns can respond to market changes faster, take on less technical risk, and maintain business continuity throughout transformation.
The pattern isn't just a migration strategy—it's a philosophy about how systems change over time. Legacy systems aren't failures to be eliminated; they're successful systems that need to evolve. By wrapping rather than replacing, routing rather than rewriting, and learning rather than assuming, teams can modernize even the most complex systems without the drama of big-bang rewrites.
For teams facing legacy modernization, the Strangler Pattern offers a proven path forward. Start small, measure carefully, learn continuously, and trust that gradual progress compounds into significant transformation. The strangler fig eventually becomes a tree in its own right, and so too can a legacy system evolve into a modern architecture—one incremental step at a time.
